Sequence Detection Of Crankcase Bearing Sets
High Automotive Components Manufacturer:
In automotive manufacturing, product quality extends beyond machining and assembly. Packaging accuracy is equally critical, especially when components must be delivered to customers in a specific sequence and orientation for downstream assembly operations.
Even a single packaging error can disrupt production lines, create costly downtime, and damage supplier-customer relationships.
To address this challenge, PRAL VR developed an AI-powered vision inspection system that automatically verifies the sequence and orientation of crankcase bearing caps before shipment, ensuring packaging accuracy and preventing costly errors from reaching customers.
Customer Background
The customer is a leading manufacturer of high-precision automotive components serving OEMs and Tier-1 suppliers across the automotive industry.
Their product portfolio includes critical engine, transmission, axle, chassis, and suspension components, all of which must meet stringent quality and traceability requirements.
Given the demanding nature of automotive manufacturing, even minor packaging errors can have significant consequences throughout the supply chain.
The Challenge

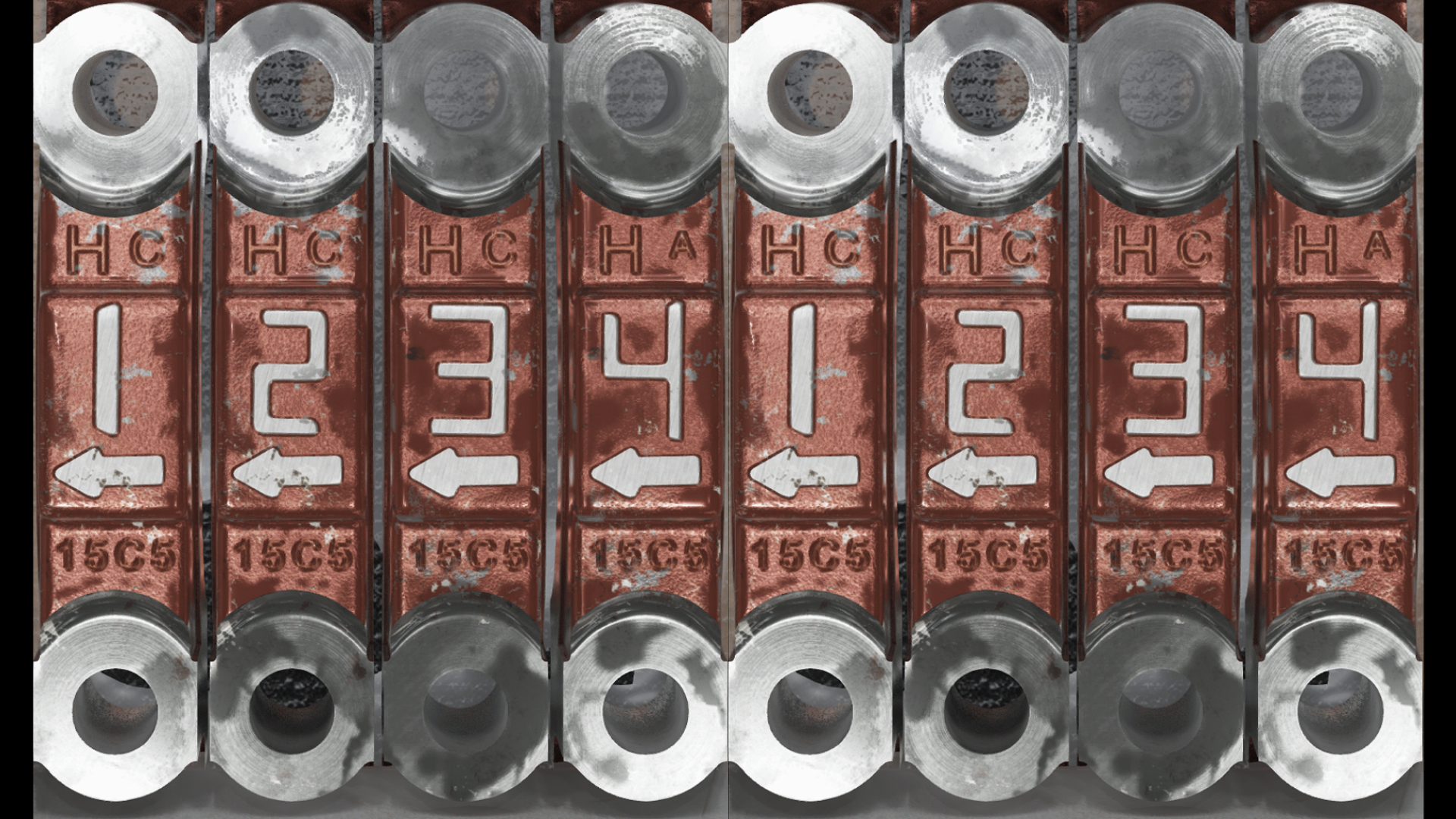

The customer manufactures engine bearing caps that must be packaged in a predefined ascending sequence before dispatch.
In addition to the correct sequence, each bearing cap must be positioned with its directional arrow facing the same direction to ensure proper identification and assembly at the customer’s facility.
Although operators followed established work instructions and manual checklists, occasional packaging errors still occurred.
Common issues included:
- Bearing caps placed in an incorrect sequence
- Incorrect orientation of one or more components
- Human errors during repetitive packaging operations
- Missed deviations during final visual verification
While these incidents were rare, their impact was substantial.
Incorrectly packaged bearing caps reached customer assembly lines, resulting in production stoppages, investigation efforts, and corrective actions. In some cases, the manufacturer faced financial penalties due to customer downtime and production disruptions.
The customer required an automated verification system capable of ensuring every packaged set met sequence and orientation requirements before shipment.
The PRAL VR Solution
PRAL VR developed an AI-powered machine vision inspection system specifically designed for packaging verification of crankcase bearing cap sets.
The system utilizes industrial cameras, controlled lighting, and custom-trained computer vision models to perform real-time validation immediately after packaging.
Each packaged set is automatically inspected to verify:
Sequence Validation
The system confirms that bearing caps are arranged in the correct ascending order according to predefined packaging specifications.
Orientation Verification
The system verifies that all directional arrows are consistently positioned in the required direction before shipment.
If any deviation is detected, the system immediately generates an alert and automatically stops the packaging station, preventing non-conforming products from proceeding further.
This ensures that incorrect packaging is identified and corrected before reaching the customer.
Key Features
AI-Powered Sequence Detection
Custom-trained vision models automatically verify the arrangement of bearing caps and identify sequencing errors in real time.
Orientation Verification
The system confirms that every bearing cap is positioned correctly according to customer packaging requirements.
Real-Time Packaging Validation
Every packaged set is inspected instantly, enabling immediate corrective action whenever a deviation is detected.
Automated Error Prevention
The packaging process can be halted automatically when a non-conforming package is detected, preventing shipment of incorrect products.
Industrial Vision Integration
Industrial cameras and optimized lighting ensure reliable inspection performance under production conditions.
Production Traceability
Inspection results can be recorded and linked to production data, providing accountability and quality traceability.
Results and Business Impact
The deployment delivered immediate improvements in packaging quality and customer satisfaction.
Elimination of Packaging Errors
Automated verification significantly reduced the risk of sequence and orientation mistakes reaching customers.
Prevention of Customer Line Stoppages
By identifying packaging errors before shipment, the system helped prevent costly disruptions at customer assembly facilities.
Reduced Human Dependency
The automated inspection process reduced reliance on manual verification and improved operational consistency.
Improved Customer Confidence
Consistent packaging accuracy strengthened trust with OEM and Tier-1 customers.
Reduced Quality Costs
Early detection of packaging deviations minimized the costs associated with corrective actions, investigations, and customer complaints.
Enhanced Process Reliability
The solution introduced a robust error-proofing mechanism that ensures compliance with packaging requirements on every shipment.
Why Packaging Verification Matters
In modern automotive manufacturing, packaging is an extension of the quality control process.
Customers increasingly expect suppliers to deliver components that are not only dimensionally accurate but also packaged correctly for efficient downstream assembly.
AI-powered machine vision systems enable manufacturers to implement automated packaging verification, reduce human error, and strengthen supply chain reliability.
Conclusion
Packaging errors may appear minor, but their impact can be significant when they disrupt customer production lines and create avoidable quality incidents.
This project demonstrates how AI-powered vision inspection can transform packaging operations by automatically verifying sequence and orientation requirements in real time.
By combining industrial cameras, intelligent vision algorithms, and automated process control, manufacturers can eliminate packaging errors, improve customer satisfaction, and protect valuable business relationships.
